画像はあくまで参考です。
PT01E-22-55P(SR)
-
Amphenol Industrial Operations
-
Circular Connectors

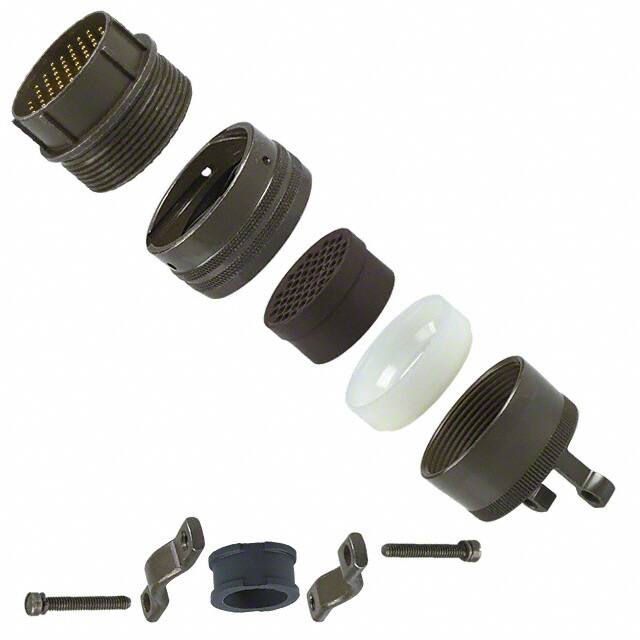

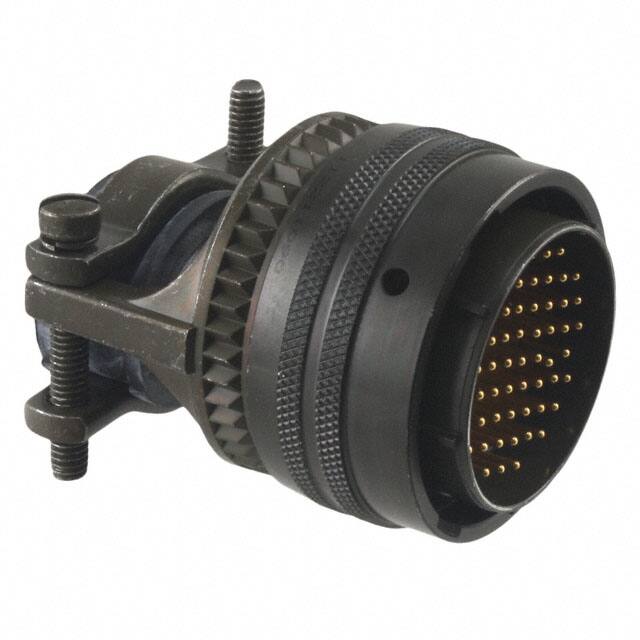

- Circular MIL Spec Connector 55P Sz 22 Cbl Mt Pin Recept Strain Relief
Date Sheet
在庫數 31
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：16 Weeks
- Mount：Cable, Flanges, Free Hanging
- Mounting Type：Free Hanging (In-Line)
- Shell Material：Aluminum
- Insert Material：Neoprene
- Body Material：Aluminium
- Backshell Material, Plating：Aluminum, Olive Drab Cadmium
- Contact Finish Mating：Gold
- Contact Materials：Copper Alloy
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：MIL-DTL-26482 Series I, PT
- Published：2006
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder Cup
- Connector Type：Receptacle, Male Pins
- Number of Positions：55
- Color：Olive Drab
- Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
- Gender：Receptacle
- Fastening Type：Bayonet Lock
- Orientation：N (Normal)
- Shielding：Unshielded
- Ingress Protection：Environment Sealed
- Current Rating：7.5A
- Military Standard：MIL-DTL-26482
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：22-55
- Voltage - Rated AC：600V
- Approval Agency：UL
- Contact Gender：Male
- Contact Style：Pin
- Body Plating：Cadmium
- Features：Backshell, Cable Clamp
- REACH SVHC：No SVHC
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
- Ratings：Environment Resistant
