PT02E-12-10S

Amphenol Industrial Operations
Circular Connectors
Metal
Conn Miniature Cylindrical SKT 10 POS Solder ST Box Mount 10 Terminal 1 Port
Date Sheet

在庫數 200

1+： $17.47091
10+： $16.48199
100+： $15.54905
500+： $14.66892
1000+： $13.83860

小計金額 $17.47091

仕様よくある質問

Factory Lead Time：12 Weeks
Mount：Box, Flanges, Panel
Mounting Type：Panel Mount
Package / Case：Metal
Mounting Feature：Flange
Shell Material：Aluminum
Insert Material：Neoprene
Body Material：Aluminium
Contact Finish Mating：Gold
Contact Materials：Copper Alloy
Insulation Materials：Rubber
Voltage Rated：600V
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：MIL-DTL-26482 Series I, PT
Published：2006
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
Connector Type：Receptacle, Female Sockets
Number of Positions：10
Color：Olive Drab
Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender：Receptacle
Additional Feature：STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Fastening Type：Bayonet Lock
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：10
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Sealed
Depth：26.18mm
Current Rating：7.5A
Military Standard：MIL-DTL-26482
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：12-10
Voltage - Rated AC：600V
Approval Agency：UL
Contact Gender：Female
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Socket
Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating：Cadmium, Chromate
Wire Gauge (Max)：24 AWG
Wire Gauge (Min)：20 AWG
Body Plating：Cadmium
Length：24.33mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Lead Free：Contains Lead
Ratings：Environment Resistant

在庫數 200

1+： $17.47091
10+： $16.48199
100+： $15.54905
500+： $14.66892
1000+： $13.83860

小計金額 $17.47091

類似スペック製品

PT02E-12-10S Amphenol Industrial Operations
最低価格$17.470913 在庫數 200

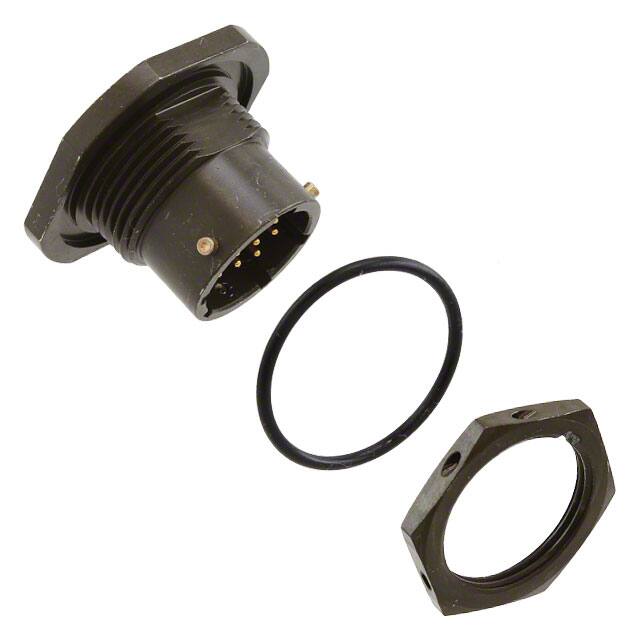

PT07A-12-10P Amphenol Industrial Operations
