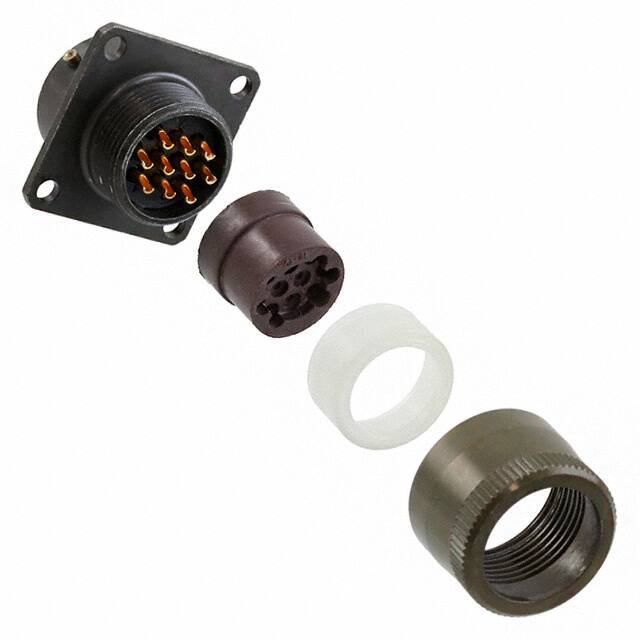

画像はあくまで参考です。

PT07A-12-10P

在庫數 192

  • 1+: $26.12009
  • 10+: $24.64159
  • 100+: $23.24679
  • 500+: $21.93093
  • 1000+: $20.68956

小計金額 $26.12009

仕様 よくある質問
  • Factory Lead Time:12 Weeks
  • Mounting Type:Bulkhead, Front Side Nut, Jam Nut, Panel
  • Mounting Feature:Bulkhead - Front Side Nut
  • Shell Material:Aluminum
  • Insert Material:Neoprene
  • Body Material:Aluminium
  • Contact Finish Mating:Gold
  • Contact Materials:Copper Alloy
  • Voltage Rated:600V
  • Operating Temperature:-55°C~125°C
  • Packaging:Bulk
  • Series:MIL-DTL-26482 Series I, PT
  • Published:2006
  • JESD-609 Code:e4
  • Pbfree Code:no
  • Part Status:Active
  • Moisture Sensitivity Level (MSL):1 (Unlimited)
  • Termination:Solder Cup
  • Connector Type:Receptacle, Male Pins
  • Number of Positions:10
  • Color:Olive Drab
  • Applications:Aerospace, Industrial, Instrumentation, Mass Transit, Military
  • Gender:Male
  • Additional Feature:STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
  • Fastening Type:Bayonet Lock
  • DIN Conformance:NO
  • IEC Conformance:NO
  • Filter Feature:NO
  • Mixed Contacts:NO
  • Option:GENERAL PURPOSE
  • Current Rating (Amps):7.5A
  • Orientation:N (Normal)
  • Shielding:Unshielded
  • Depth:31.75mm
  • Military Standard:YES
  • Shell Finish:Olive Drab Chromate over Cadmium
  • Shell Size - Insert:12-10
  • Approval Agency:UL
  • Number of Contacts:10
  • Empty Shell:NO
  • Backshell Type:SOLID
  • Contact Style:Pin
  • Environmental Characteristics:CORROSION/ENVIRONMENT/MOISTURE RESISTANT
  • Plating:Cadmium, Chromate
  • Wire Gauge (Max):24 AWG
  • Wire Gauge (Min):20 AWG
  • Body Plating:Cadmium
  • Diameter:19mm
  • Length:23.54mm
  • REACH SVHC:Unknown
  • Radiation Hardening:No
  • RoHS Status:Non-RoHS Compliant

在庫數 192

  • 1+: $26.12009
  • 10+: $24.64159
  • 100+: $23.24679
  • 500+: $21.93093
  • 1000+: $20.68956

小計金額 $26.12009
