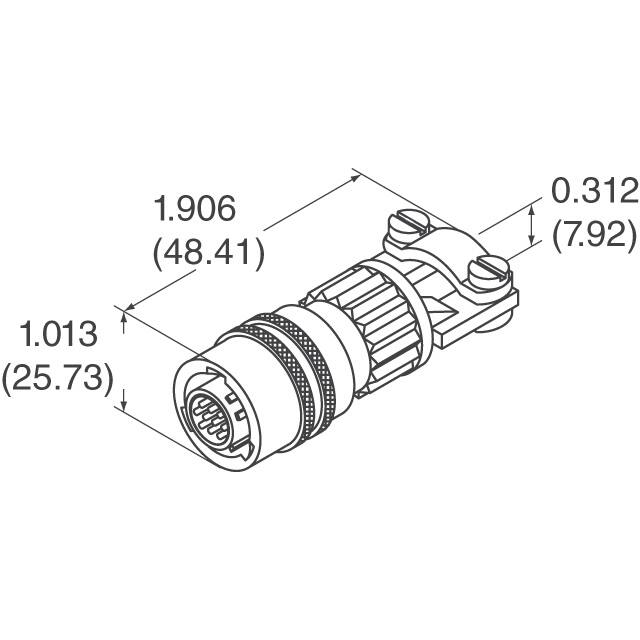

画像はあくまで参考です。
PT06E-12-10P(SR)
-
Amphenol Industrial Operations
-
Circular Connectors
- Metal
- Conn Miniature Cylindrical PIN 10 POS Solder ST Cable Mount 10 Terminal 1 Port
Date Sheet
在庫數 300
- 1+： $26.67818
- 10+： $25.16810
- 100+： $23.74349
- 500+： $22.39952
- 1000+： $21.13162
小計金額 $26.67818
仕様 よくある質問
- Factory Lead Time：12 Weeks
- Mount：Cable, Free Hanging
- Mounting Type：Free Hanging (In-Line)
- Package / Case：Metal
- Shell Material：Aluminum
- Insert Material：Neoprene
- Body Material：Aluminium
- Backshell Material, Plating：Aluminum, Olive Drab Cadmium
- Contact Finish Mating：Gold
- Contact Materials：Copper Alloy
- Insulation Materials：Rubber
- Voltage Rated：600V
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：MIL-DTL-26482 Series I, PT
- Published：2005
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder Cup
- ECCN Code：EAR99
- Connector Type：Plug, Male Pins
- Number of Positions：10
- Color：Olive Drab
- Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
- HTS Code：8536.69.40.20
- Fastening Type：Bayonet Lock
- Orientation：N (Normal)
- Shielding：Unshielded
- Ingress Protection：Environment Sealed
- Current Rating：7.5A
- Military Standard：MIL-DTL-26482
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：12-10
- Voltage - Rated AC：600V
- Approval Agency：UL
- Contact Gender：Male
- Contact Style：Pin
- Plating：Cadmium, Chromate
- Wire Gauge (Max)：24 AWG
- Wire Gauge (Min)：20 AWG
- Body Plating：Cadmium
- Features：Backshell, Cable Clamp, Coupling Nut
- Length：48.41mm
- REACH SVHC：Unknown
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
- Lead Free：Contains Lead
- Ratings：Environment Resistant
在庫數 300
- 1+： $26.67818
- 10+： $25.16810
- 100+： $23.74349
- 500+： $22.39952
- 1000+： $21.13162
小計金額 $26.67818
