PT01E-12-10P

Amphenol Industrial Operations
Circular Connectors

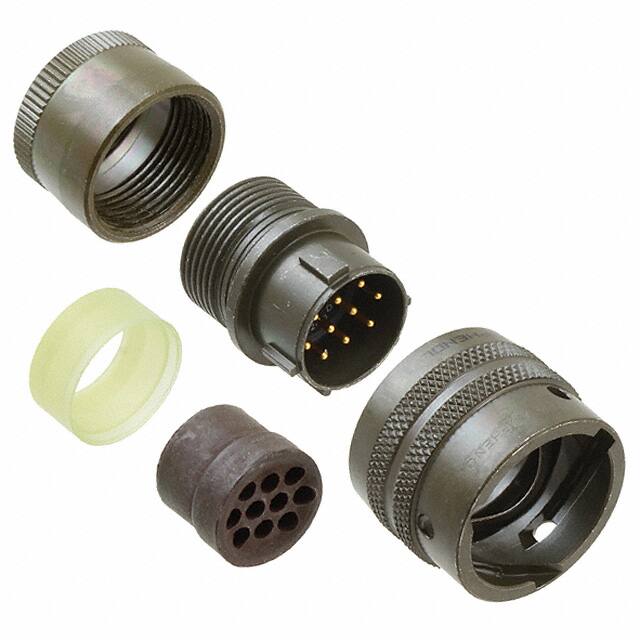

AMPHENOL PT01E1210P Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Cable Mount Receptacle, 10
Date Sheet

在庫數 36

1+： $33.83442
10+： $31.91927
100+： $30.11252
500+： $28.40804
1000+： $26.80003

小計金額 $33.83442

仕様よくある質問

Factory Lead Time：16 Weeks
Mount：Cable, Flanges, Free Hanging
Mounting Type：Free Hanging (In-Line)
Shell Material：Aluminum
Insert Material：Neoprene
Body Material：Aluminium
Backshell Material, Plating：Aluminum, Olive Drab Cadmium
Contact Finish Mating：Gold
Contact Materials：Copper Alloy
Voltage Rated：600V
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：MIL-DTL-26482 Series I, PT
Published：2006
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
Connector Type：Receptacle, Male Pins
Number of Positions：10
Color：Olive Drab
Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender：Receptacle
Additional Feature：STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Fastening Type：Bayonet Lock
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：10
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Sealed
Current Rating：7.5A
Military Standard：MIL-DTL-26482
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：12-10
Voltage - Rated AC：600V
Approval Agency：UL
Contact Gender：Male
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Pin
Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating：Cadmium, Chromate
Wire Gauge (Max)：24 AWG
Wire Gauge (Min)：20 AWG
Body Plating：Cadmium
Features：Backshell
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Ratings：Environment Resistant

在庫數 36

1+： $33.83442
10+： $31.91927
100+： $30.11252
500+： $28.40804
1000+： $26.80003

小計金額 $33.83442
