PT06A-12-3S

Amphenol Industrial Operations
Circular Connectors
Metal
CONN PLUG FMALE 3POS SOLDER CUP
Date Sheet

在庫數 131

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：12 Weeks
Mounting Type：Cable, Free Hanging
Package / Case：Metal
Shell Material：Aluminum
Insert Material：Neoprene
Body Material：Aluminium
Backshell Material, Plating：Aluminum, Olive Drab Cadmium
Contact Finish Mating：Gold
Contact Materials：Copper Alloy
Insulation Materials：Rubber
Voltage Rated：1kV
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：MIL-DTL-26482 Series I, PT
Published：2004
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
Connector Type：Plug, Female Sockets
Number of Positions：3
Color：Olive Drab
Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender：Female
Additional Feature：STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Fastening Type：Bayonet Lock
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：13A
Orientation：N (Normal)
Shielding：Unshielded
Military Standard：YES
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：12-3
Voltage - Rated AC：1kV
Approval Agency：UL
Number of Contacts：3
Empty Shell：NO
Operating Supply Voltage：1kV
Backshell Type：SOLID
Contact Style：Socket
Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating：Cadmium, Chromate
Wire Gauge (Max)：20 AWG
Wire Gauge (Min)：16 AWG
Body Plating：Cadmium
Features：Backshell, Coupling Nut
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Lead Free：Contains Lead

在庫數 131

小計金額 $0.00000

類似スペック製品

PT06A-12-3S Amphenol Industrial Operations
見積かごへ在庫數 131
PT06E-12-3P Amphenol Industrial Operations
見積かごへ在庫數 99

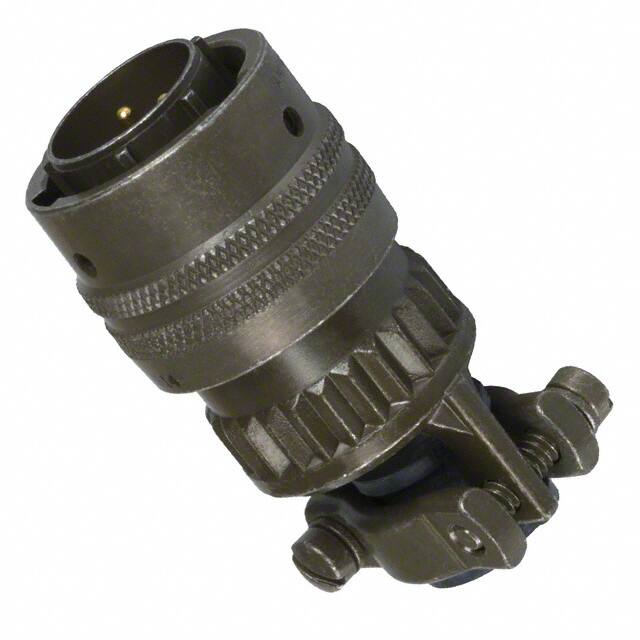

PT06E-12-3P(SR) Amphenol Industrial Operations
