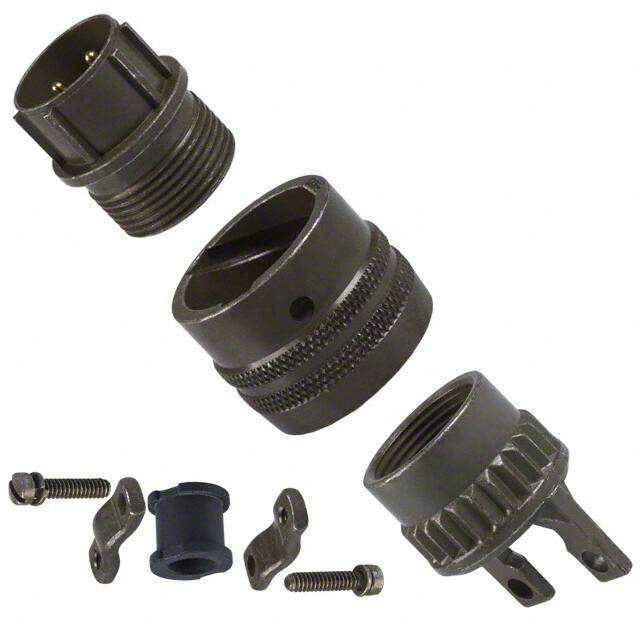

画像はあくまで参考です。
PT06E-12-3P
-
Amphenol Industrial Operations
-
Circular Connectors
- AMPHENOL PT06E12-3P Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Straight Plug, 3, Solder Pin
Date Sheet
在庫數 99
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：16 Weeks
- Mounting Type：Cable, Free Hanging
- Shell Material：Aluminum
- Insert Material：Neoprene
- Body Material：Aluminium
- Backshell Material, Plating：Aluminum, Olive Drab Cadmium
- Contact Finish Mating：Gold
- Contact Materials：Copper Alloy
- Voltage Rated：1kV
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：MIL-DTL-26482 Series I, PT
- Published：2006
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder Cup
- Connector Type：Plug, Male Pins
- Number of Positions：3
- Color：Olive Drab
- Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
- Gender：Male
- Additional Feature：STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
- Fastening Type：Bayonet Lock
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Current Rating (Amps)：13A
- Orientation：N (Normal)
- Shielding：Unshielded
- Ingress Protection：Environment Sealed
- Military Standard：YES
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：12-3
- Voltage - Rated AC：1kV
- Approval Agency：UL
- Number of Contacts：3
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：Pin
- Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
- Plating：Cadmium, Chromate
- Wire Gauge (Max)：20 AWG
- Wire Gauge (Min)：16 AWG
- Body Plating：Cadmium
- Features：Backshell, Coupling Nut
- REACH SVHC：No SVHC
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
- Ratings：Environment Resistant
