MS3102E24-5P

Amphenol Industrial Operations
Circular Connectors

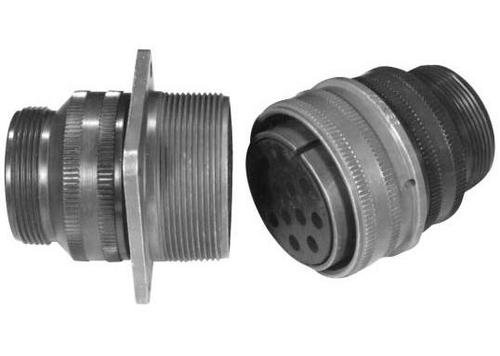

AMPHENOL MS3102E24-5P Circular Connector, MIL-DTL-5015 Series, Box Mount Receptacle, 16, Solder Pin, Threaded, 24-5
Date Sheet

在庫數 36

小計金額 $22.20408

仕様よくある質問

Factory Lead Time：16 Weeks
Contact Plating：Silver, Gold
Mount：Box, Flanges, Panel
Mounting Type：Panel Mount
Mounting Feature：Flange
Shell Material：Aluminum Alloy
Insert Material：Neoprene
Body Material：Aluminium
Contact Finish Mating：Silver
Contact Materials：Copper Alloy
Voltage Rated：700V
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：MIL-5015 Type
Published：2005
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
ECCN Code：EAR99
Connector Type：Receptacle, Male Pins
Number of Positions：16
Color：Olive Drab
Applications：Marine, Military
Gender：Receptacle
Additional Feature：STANDARD: MIL-C-5015, COMPATIBLE CONTACTS: 10-40569; 10-40599
HTS Code：8536.69.40.20
Fastening Type：Threaded
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：16
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Resistant
Depth：44.45mm
Current Rating：13A
Military Standard：MIL-DTL-5015
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：24-5
Contact Gender：Male
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Pin
Plating：Cadmium, Chromate
Wire Gauge (Max)：12 AWG
Wire Gauge (Min)：22 AWG
Body Plating：Cadmium
Cable Opening：1.375 (34.93mm)
Length：38.88mm
REACH SVHC：Unknown
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Ratings：Environment Resistant
