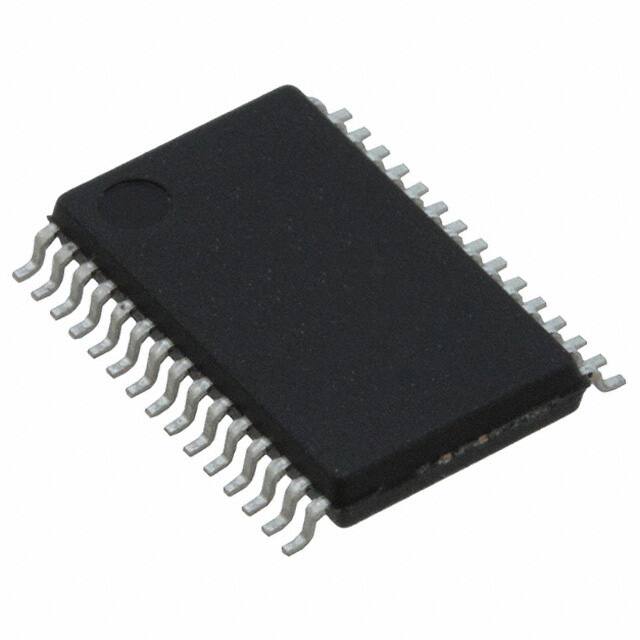

画像はあくまで参考です。
LB11872H-TLM-E
-
ON Semiconductor
-
PMIC - Motor Drivers, Controllers
- 28-SOP (0.311, 7.90mm Width) Exposed Pad + 2 Heat Tabs
- Motor / Motion / Ignition Controllers & Drivers 3PHASE MOTOR DRIVER
Date Sheet
在庫數 1000
小計金額 $0.00000
仕様 よくある質問
- Lifecycle Status：LAST SHIPMENTS (Last Updated: 1 month ago)
- Factory Lead Time：4 Weeks
- Mount：Surface Mount
- Mounting Type：Surface Mount
- Package / Case：28-SOP (0.311, 7.90mm Width) Exposed Pad + 2 Heat Tabs
- Number of Pins：28
- Operating Temperature：-20°C~85°C TA
- Packaging：Tape & Reel (TR)
- Published：2008
- JESD-609 Code：e6
- Pbfree Code：yes
- Part Status：Obsolete
- Moisture Sensitivity Level (MSL)：3 (168 Hours)
- Number of Terminations：28
- Terminal Finish：Tin/Bismuth (Sn/Bi)
- Applications：Polygonal Mirror
- HTS Code：8542.39.00.01
- Voltage - Supply：10V~28V
- Terminal Position：DUAL
- Terminal Form：GULL WING
- Peak Reflow Temperature (Cel)：NOT SPECIFIED
- Supply Voltage：24V
- Terminal Pitch：0.8mm
- Time@Peak Reflow Temperature-Max (s)：NOT SPECIFIED
- Function：Driver - Fully Integrated, Control and Power Stage
- Qualification Status：Not Qualified
- Output Voltage：6.6V
- Power Supplies：24V
- Interface：Parallel
- Analog IC - Other Type：BRUSHLESS DC MOTOR CONTROLLER
- Nominal Supply Current：7mA
- Output Configuration：Half Bridge (3)
- Power Dissipation：800mW
- Logic Function：AND
- Supply Current-Max (Isup)：22mA
- Collector Emitter Voltage (VCEO)：28V
- Max Collector Current：1.2A
- Voltage - Load：10V~28V
- Voltage - Supply (Min)：10V
- Motor Type：Brushless DC (BLDC)
- Motor Type - AC, DC：Brushless DC (BLDC)
- Height：2.25mm
- Length：15.2mm
- Width：7.9mm
- RoHS Status：RoHS Compliant
- Lead Free：Lead Free
