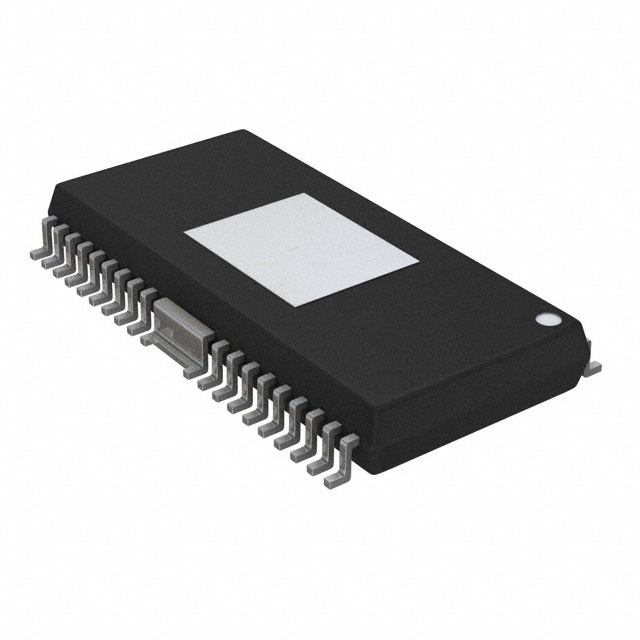

画像はあくまで参考です。
LB11873-TRM-E
-
ON Semiconductor
-
PMIC - Motor Drivers, Controllers
- 36-SOP (0.311, 7.90mm Width) Exposed Pad + 2 Heat Tabs
- Motor / Motion / Ignition Controllers & Drivers 3PHASE MOTOR DRIVER
Date Sheet
在庫數 1826
小計金額 $0.00000
仕様 よくある質問
- Lifecycle Status：LAST SHIPMENTS (Last Updated: 1 month ago)
- Factory Lead Time：32 Weeks
- Mount：Surface Mount
- Mounting Type：Surface Mount
- Package / Case：36-SOP (0.311, 7.90mm Width) Exposed Pad + 2 Heat Tabs
- Number of Pins：36
- Operating Temperature：-20°C~85°C TA
- Packaging：Tape & Reel (TR)
- Published：2007
- JESD-609 Code：e6
- Pbfree Code：yes
- Part Status：Obsolete
- Moisture Sensitivity Level (MSL)：3 (168 Hours)
- Number of Terminations：36
- Terminal Finish：Tin/Bismuth (Sn/Bi)
- Applications：Polygonal Mirror
- HTS Code：8542.39.00.01
- Voltage - Supply：9.5V~28V
- Terminal Position：DUAL
- Terminal Form：GULL WING
- Peak Reflow Temperature (Cel)：NOT SPECIFIED
- Supply Voltage：24V
- Terminal Pitch：0.8mm
- Time@Peak Reflow Temperature-Max (s)：NOT SPECIFIED
- Function：Driver - Fully Integrated, Control and Power Stage
- Qualification Status：Not Qualified
- Output Voltage：5.35V
- Supply Voltage-Max (Vsup)：28V
- Power Supplies：24V
- Interface：Parallel
- Analog IC - Other Type：BRUSHLESS DC MOTOR CONTROLLER
- Nominal Supply Current：28mA
- Output Configuration：Half Bridge (3)
- Power Dissipation：900mW
- Logic Function：AND
- Voltage - Load：9.5V~28V
- Voltage - Supply (Min)：9.5V
- Motor Type - AC, DC：Brushless DC (BLDC)
- Length：17.8mm
- Height Seated (Max)：2.45mm
- Width：7.9mm
- RoHS Status：RoHS Compliant
- Lead Free：Lead Free
