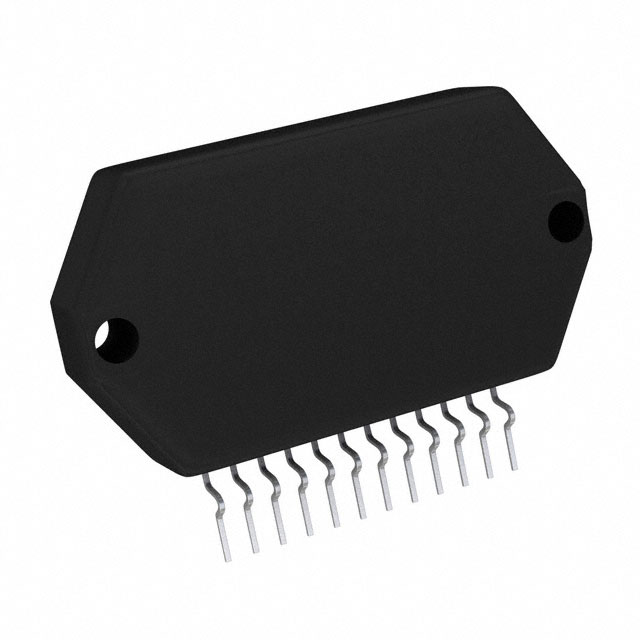

STK672-532

在庫數 600

小計金額 $0.00000

仕様よくある質問

Lifecycle Status：LIFETIME (Last Updated: 2 weeks ago)
Mount：Through Hole
Mounting Type：Through Hole
Package / Case：12-SIP Formed Leads
Number of Pins：12
Operating Temperature：0°C~105°C TC
Packaging：Tube
Published：2013
JESD-609 Code：e2
Pbfree Code：yes
Part Status：Obsolete
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：12
Terminal Finish：Tin/Nickel/Copper (Sn/Ni/Cu)
Applications：General Purpose
Additional Feature：ALSO OPERATES IN 10 TO 42V SUPPLY, SEATED HT-CALCULATED, SEATED HGT-NOM
HTS Code：8542.39.00.01
Voltage - Supply：4.75V~5.25V
Terminal Position：SINGLE
Supply Voltage：5V
Terminal Pitch：2mm
Function：Driver - Fully Integrated, Control and Power Stage
Supply Voltage-Max (Vsup)：5.25V
Supply Voltage-Min (Vsup)：4.75V
Interface：Parallel
Analog IC - Other Type：STEPPER MOTOR CONTROLLER
Output Configuration：Half Bridge (2)
Logic Function：AND
Voltage - Load：10V~42V
Motor Type - Stepper：Unipolar
Step Resolution：1, 1/2
Length：32.5mm
Height Seated (Max)：27mm
Width：8.5mm
RoHS Status：RoHS Compliant
Lead Free：Lead Free
