FDMS7556S

ON Semiconductor
Transistors - FETs, MOSFETs - Single
8-PowerTDFN
MOSFET N-CH 25V 35A POWER56
Date Sheet

在庫數 21000

小計金額 $0.00000

仕様よくある質問

Lifecycle Status：ACTIVE (Last Updated: 3 days ago)
Factory Lead Time：10 Weeks
Mount：Surface Mount
Mounting Type：Surface Mount
Package / Case：8-PowerTDFN
Number of Pins：8
Weight：90mg
Transistor Element Material：SILICON
Current - Continuous Drain (Id) @ 25℃：35A Ta 49A Tc
Drive Voltage (Max Rds On, Min Rds On)：4.5V 10V
Number of Elements：1
Power Dissipation (Max)：2.5W Ta 96W Tc
Turn Off Delay Time：48 ns
Operating Temperature：-55°C~150°C TJ
Packaging：Tape & Reel (TR)
Series：PowerTrench®, SyncFET™
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：5
ECCN Code：EAR99
Terminal Finish：Tin (Sn)
Terminal Position：DUAL
Terminal Form：FLAT
JESD-30 Code：R-PDSO-F5
Element Configuration：Single
Operating Mode：ENHANCEMENT MODE
Power Dissipation：96W
Case Connection：DRAIN
Turn On Delay Time：20 ns
FET Type：N-Channel
Transistor Application：SWITCHING
Rds On (Max) @ Id, Vgs：1.2m Ω @ 35A, 10V
Vgs(th) (Max) @ Id：3V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds：8965pF @ 13V
Gate Charge (Qg) (Max) @ Vgs：133nC @ 10V
Rise Time：9ns
Drain to Source Voltage (Vdss)：25V
Vgs (Max)：±20V
Fall Time (Typ)：5.3 ns
Continuous Drain Current (ID)：49A
Threshold Voltage：1.6V
JEDEC-95 Code：MO-240AA
Gate to Source Voltage (Vgs)：20V
Drain Current-Max (Abs) (ID)：35A
Pulsed Drain Current-Max (IDM)：200A
DS Breakdown Voltage-Min：25V
Nominal Vgs：1.6 V
Height：1.05mm
Length：5mm
Width：6mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 21000

小計金額 $0.00000

類似スペック製品

FDMS7556S ON Semiconductor
見積かごへ在庫數 21000
FDD8770 ON Semiconductor
最低価格$1.379059 在庫數 2500
IRFH4210DTRPBF Infineon Technologies
最低価格$3.759145 在庫數 33889

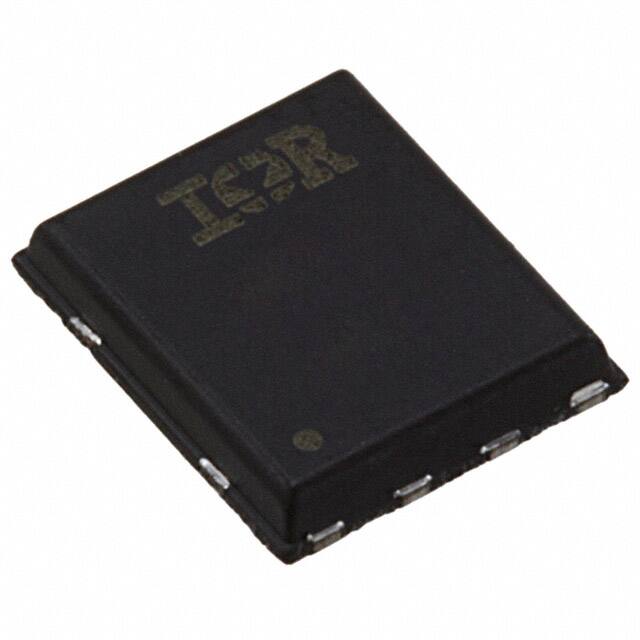

IRFH4201TRPBF Infineon Technologies
