Home Connectors, Interconnects Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) 2-1735482-1

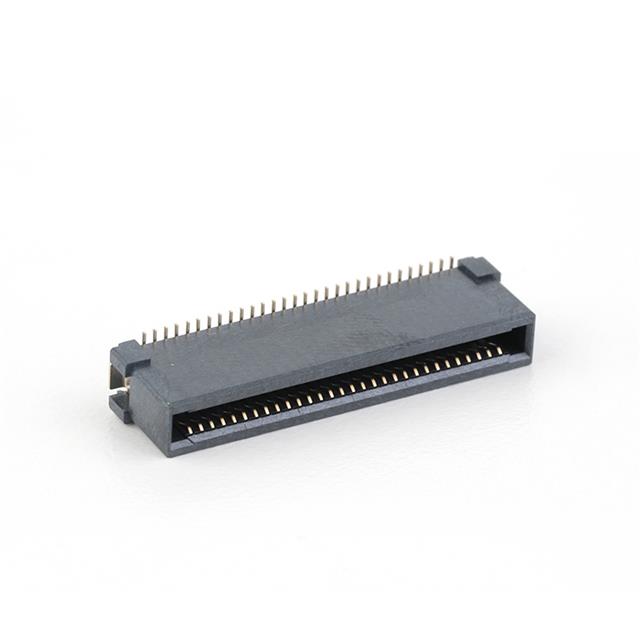

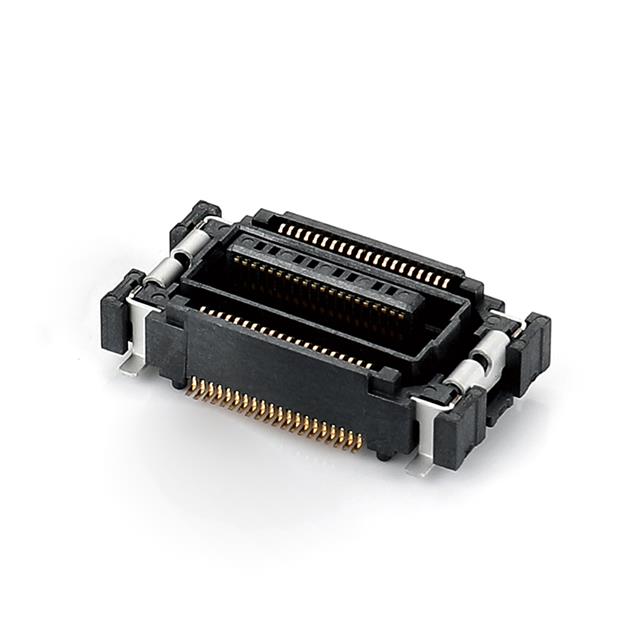

画像はあくまで参考です。
2-1735482-1
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：15 Weeks
- Contact Plating：Gold
- Body Material：Copper
- Wire Size：16 to 14, 16 AWG
- Body Orientation：Straight
- Voltage, Rating：100 Vac
- Termination Method：Solder
- Base/Housing Material：LCP (Liquid Crystal Polymer)
- Contact Materials：Copper Alloy
- Mounting：Surface Mount
- Voltage Rating Max：100VAC
- Number of Contact Rows：2
- Product Depth (mm)：6.8(mm)
- Operating Temp Range：-40C to 125C
- Mounting Styles：Surface Mount
- Pitch (mm)：0.8(mm)
- Factory Pack QuantityFactory Pack Quantity：100
- Manufacturer：TE Connectivity
- Brand：TE Connectivity
- RoHS：Details
- Contact Finish Mating：NOT SPECIFIED
- Rohs Code：Yes
- Manufacturer Part Number：2-1735482-1
- Part Life Cycle Code：Active
- Ihs Manufacturer：TE CONNECTIVITY LTD
- Risk Rank：2.27
- Operating Temperature：-40 to 85 °C
- Packaging：Tape and Reel
- Connector Type：BOARD STACKING CONNECTOR
- Type：Ring Tongue Terminal
- Number of Rows：2
- Gender：Receptacle
- Subcategory：Board to Board & Mezzanine Connectors
- Pitch：0.8000 mm
- Reach Compliance Code：compliant
- Number of Contacts：40 POS
- Housing Color：Natural
- Brand Name：AMP
- Family：Free Height (FH) Board-to-Board Connectors
- Product Type：Board to Board & Mezzanine Connectors
- Current Rating (Max)：0.5/Contact(A)
- Stud Size：8 mm
- Product Category：Board to Board & Mezzanine Connectors
- Product Length：21.8 mm
- Product Length (mm)：21.8(mm)
- Product Height (mm)：15.75(mm)
