SSM-104-L-DV

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
CONN RCPT .100" 8POS DUAL VERT
Date Sheet

在庫數 2150

1+： $2.12030
10+： $2.00028
100+： $1.88706
500+： $1.78024
1000+： $1.67947

小計金額 $2.12030

仕様よくある質問

Factory Lead Time：2 Weeks
Mount：Surface Mount
Mounting Type：Surface Mount
Contact Shape：Square
Housing Material：Polymer
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Voltage Rated：405VAC 572VDC
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：SSM
Published：2000
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Termination：Solder
Connector Type：Receptacle, Pass Through
Number of Positions：8
Number of Rows：2
Gender：Receptacle
Additional Feature：E.L.P., TIGER CLAW
Fastening Type：Push-Pull
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Female Socket
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：5.2A per Contact
Total Number of Contacts：8
Orientation：Straight
Depth：7.04mm
Insulation Height：0.290 7.37mm
Style：Board to Board or Cable
Number of Positions Loaded：All
Current Rating：3A
Pitch - Mating：0.100 2.54mm
Number of Conductors：ONE
Reference Standard：UL
Voltage - Rated AC：475V
Row Spacing - Mating：0.100 (2.54mm)
Number Of PCB Rows：2
Lead Pitch：2.54mm
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
UL Flammability Code：94V-0
Housing Color：Black
Contact Resistance：10mOhm
Insulation Resistance：5000000000Ohm
Mating Contact Pitch：0.1 inch
Max Voltage Rating (AC)：475V
Max Current Rating：6.9A
Dielectric Withstanding Voltage：1000VAC V
Insertion Force-Max：1.39 N
Withdrawl Force-Min：.556 N
Length：10.16mm
Plating Thickness：10μin
Contact Finish Thickness - Mating：10.0μin 0.25μm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 2150

1+： $2.12030
10+： $2.00028
100+： $1.88706
500+： $1.78024
1000+： $1.67947

小計金額 $2.12030

類似スペック製品

SSM-104-L-DV Samtec Inc.
最低価格$2.120298 在庫數 2150
SSM-103-L-DV Samtec Inc.
最低価格$1.786464 在庫數 39680
SQW-104-01-L-D-VS Samtec Inc.
最低価格$18.180508 在庫數 729
CLT-104-02-L-D Samtec Inc.
最低価格$1.2585978 在庫數 44

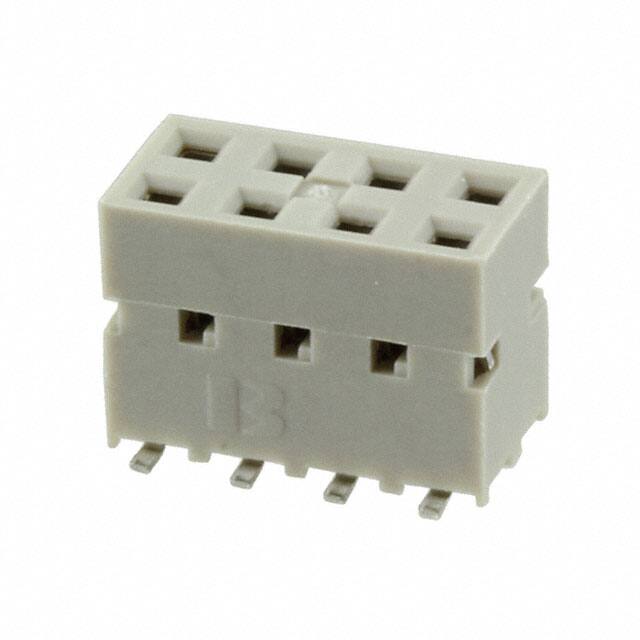

89898-304ALF Amphenol ICC (FCI)
