FDMS7698

ON Semiconductor
Transistors - FETs, MOSFETs - Single

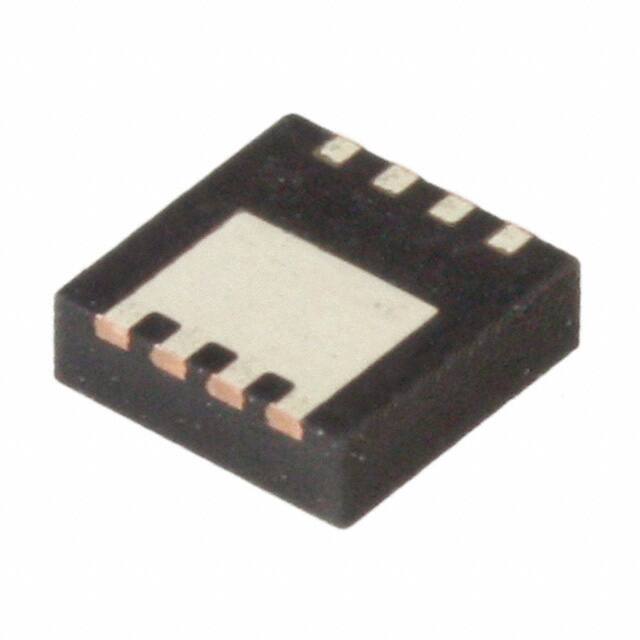

8-PowerTDFN
MOSFET N-CH 30V 13.5A POWER56
Date Sheet

在庫數 728

小計金額 $0.00000

仕様よくある質問

Lifecycle Status：ACTIVE (Last Updated: 23 hours ago)
Factory Lead Time：26 Weeks
Mount：Surface Mount
Mounting Type：Surface Mount
Package / Case：8-PowerTDFN
Number of Pins：8
Weight：74mg
Transistor Element Material：SILICON
Current - Continuous Drain (Id) @ 25℃：13.5A Ta 22A Tc
Drive Voltage (Max Rds On, Min Rds On)：4.5V 10V
Number of Elements：1
Power Dissipation (Max)：2.5W Ta 29W Tc
Turn Off Delay Time：20 ns
Operating Temperature：-55°C~150°C TJ
Packaging：Tape & Reel (TR)
Series：PowerTrench®
Published：2010
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：5
ECCN Code：EAR99
Terminal Finish：Tin (Sn)
Terminal Position：DUAL
Terminal Form：FLAT
JESD-30 Code：R-PDSO-F5
Element Configuration：Single
Operating Mode：ENHANCEMENT MODE
Power Dissipation：29W
Case Connection：DRAIN
Turn On Delay Time：9 ns
FET Type：N-Channel
Transistor Application：SWITCHING
Rds On (Max) @ Id, Vgs：10m Ω @ 13.5A, 10V
Vgs(th) (Max) @ Id：3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds：1605pF @ 15V
Gate Charge (Qg) (Max) @ Vgs：24nC @ 10V
Rise Time：3ns
Vgs (Max)：±20V
Fall Time (Typ)：3 ns
Continuous Drain Current (ID)：22A
Threshold Voltage：2V
JEDEC-95 Code：MO-240AA
Gate to Source Voltage (Vgs)：20V
Drain to Source Breakdown Voltage：30V
Pulsed Drain Current-Max (IDM)：50A
Avalanche Energy Rating (Eas)：29 mJ
Nominal Vgs：2 V
Height：1.05mm
Length：5mm
Width：6mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free
