FDMC8622

ON Semiconductor
Transistors - FETs, MOSFETs - Single
8-PowerWDFN
N-Channel Shielded Gate Power Trench® MOSFET 100V, 16A, 56mO
Date Sheet

在庫數 3000

1+： $2.06531
10+： $1.94840
100+： $1.83812
500+： $1.73407
1000+： $1.63592

小計金額 $2.06531

仕様よくある質問

Lifecycle Status：ACTIVE (Last Updated: 1 week ago)
Factory Lead Time：4 Weeks
Mount：Surface Mount
Mounting Type：Surface Mount
Package / Case：8-PowerWDFN
Number of Pins：8
Weight：200mg
Transistor Element Material：SILICON
Current - Continuous Drain (Id) @ 25℃：4A Ta 16A Tc
Drive Voltage (Max Rds On, Min Rds On)：6V 10V
Number of Elements：1
Power Dissipation (Max)：2.5W Ta 31W Tc
Turn Off Delay Time：10.2 ns
Operating Temperature：-55°C~150°C TJ
Packaging：Tape & Reel (TR)
Series：PowerTrench®
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：5
ECCN Code：EAR99
Terminal Finish：Nickel/Palladium/Gold (Ni/Pd/Au)
Additional Feature：ULTRA-LOW RESISTANCE
Terminal Position：DUAL
Terminal Form：FLAT
JESD-30 Code：R-PDSO-F5
Element Configuration：Single
Operating Mode：ENHANCEMENT MODE
Power Dissipation：31W
Case Connection：DRAIN
Turn On Delay Time：5.9 ns
FET Type：N-Channel
Transistor Application：SWITCHING
Rds On (Max) @ Id, Vgs：56m Ω @ 4A, 10V
Vgs(th) (Max) @ Id：4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds：402pF @ 50V
Gate Charge (Qg) (Max) @ Vgs：7.3nC @ 10V
Rise Time：1.6ns
Vgs (Max)：±20V
Fall Time (Typ)：2.2 ns
Continuous Drain Current (ID)：16A
Threshold Voltage：2.9V
JEDEC-95 Code：MO-240BA
Gate to Source Voltage (Vgs)：20V
Drain Current-Max (Abs) (ID)：4A
Drain-source On Resistance-Max：0.056Ohm
Drain to Source Breakdown Voltage：100V
Pulsed Drain Current-Max (IDM)：30A
Avalanche Energy Rating (Eas)：37 mJ
Nominal Vgs：2.9 V
Height：750μm
Length：3.3mm
Width：3.3mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant

在庫數 3000

1+： $2.06531
10+： $1.94840
100+： $1.83812
500+： $1.73407
1000+： $1.63592

小計金額 $2.06531

類似スペック製品

FDMC8622 ON Semiconductor
最低価格$2.065309 在庫數 3000
AUIRF7665S2TR Infineon Technologies
最低価格$0.555171 在庫數 3495

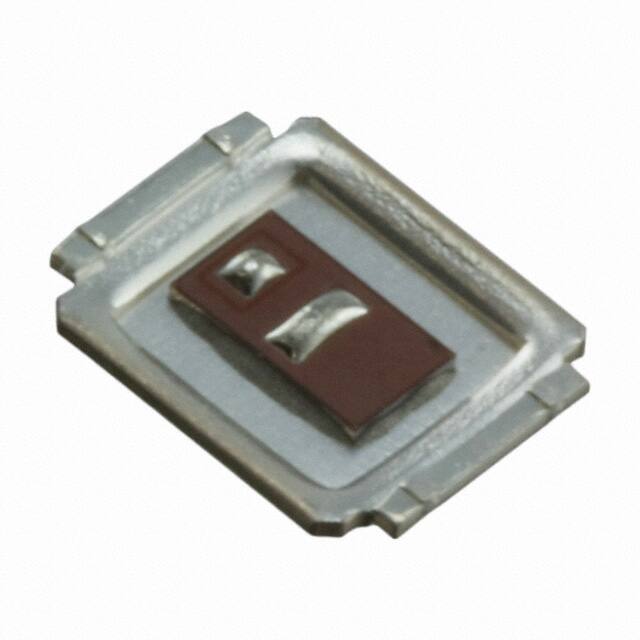

IRF6665TRPBF Infineon Technologies
