FDMC86102

在庫數 2000

1+： $2.64657
10+： $2.49677
100+： $2.35544
500+： $2.22211
1000+： $2.09633

小計金額 $2.64657

仕様よくある質問

Lifecycle Status：ACTIVE (Last Updated: 1 week ago)
Factory Lead Time：40 Weeks
Mount：Surface Mount
Mounting Type：Surface Mount
Package / Case：8-PowerTDFN
Number of Pins：8
Weight：32.13mg
Transistor Element Material：SILICON
Current - Continuous Drain (Id) @ 25℃：7A Ta 20A Tc
Drive Voltage (Max Rds On, Min Rds On)：6V 10V
Number of Elements：1
Power Dissipation (Max)：2.3W Ta 41W Tc
Turn Off Delay Time：14 ns
Operating Temperature：-55°C~150°C TJ
Packaging：Tape & Reel (TR)
Series：PowerTrench®
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：5
ECCN Code：EAR99
Resistance：24MOhm
Terminal Finish：Nickel/Palladium (Ni/Pd)
Terminal Position：DUAL
JESD-30 Code：S-PDSO-N5
Element Configuration：Single
Operating Mode：ENHANCEMENT MODE
Power Dissipation：2.3W
Case Connection：DRAIN
Turn On Delay Time：8 ns
FET Type：N-Channel
Transistor Application：SWITCHING
Rds On (Max) @ Id, Vgs：24m Ω @ 7A, 10V
Vgs(th) (Max) @ Id：4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds：965pF @ 50V
Gate Charge (Qg) (Max) @ Vgs：18nC @ 10V
Rise Time：4ns
Vgs (Max)：±20V
Fall Time (Typ)：4 ns
Continuous Drain Current (ID)：20A
Threshold Voltage：3.1V
JEDEC-95 Code：MO-240BA
Gate to Source Voltage (Vgs)：20V
Drain Current-Max (Abs) (ID)：7A
Drain to Source Breakdown Voltage：100V
Pulsed Drain Current-Max (IDM)：30A
Avalanche Energy Rating (Eas)：72 mJ
Nominal Vgs：3.1 V
Height：950μm
Length：3.4mm
Width：3.4mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 2000

1+： $2.64657
10+： $2.49677
100+： $2.35544
500+： $2.22211
1000+： $2.09633

小計金額 $2.64657

類似スペック製品

FDMC86102 ON Semiconductor
最低価格$2.646572 在庫數 2000
FDMS86104 ON Semiconductor
最低価格$3.670265 在庫數 494220

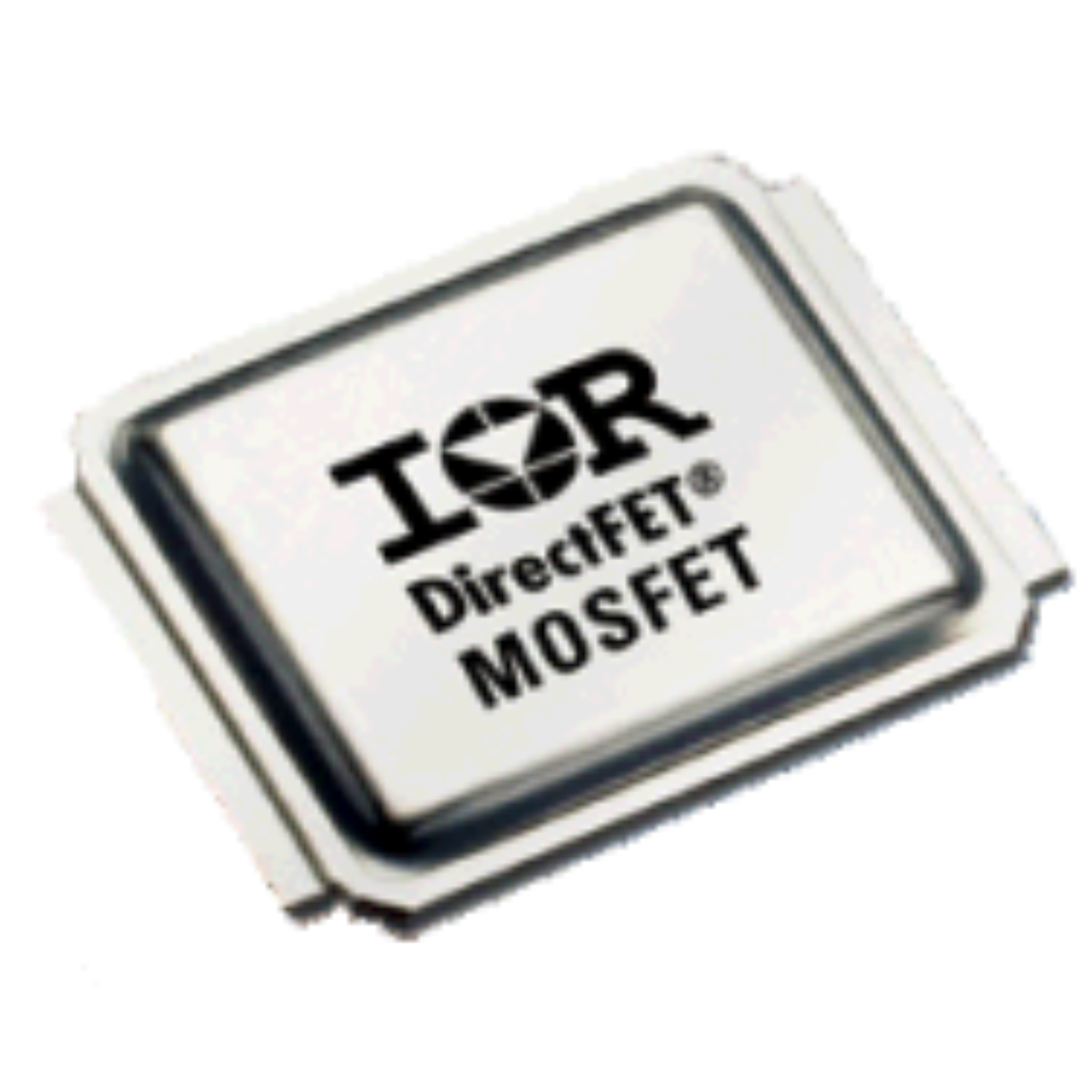

AUIRF7647S2TR Infineon Technologies
