FDMS7694

ON Semiconductor
Transistors - FETs, MOSFETs - Single

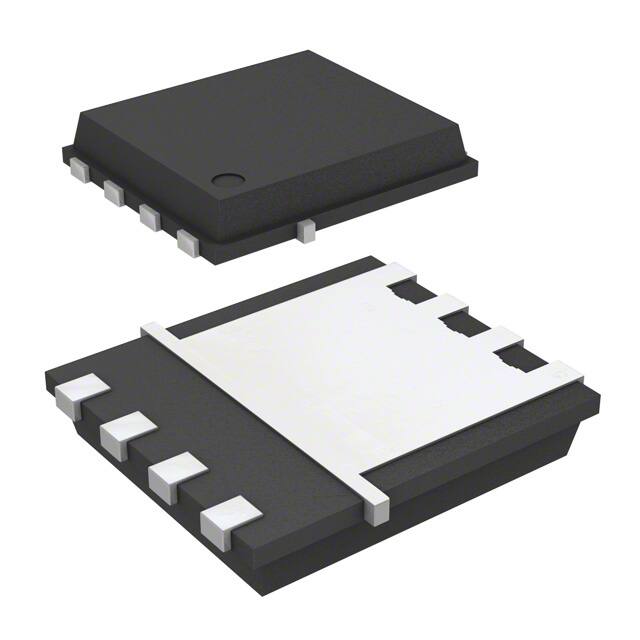

8-PowerTDFN
MOSFET N-CH 30V POWER56
Date Sheet

在庫數 360000

小計金額 $0.00000

仕様よくある質問

Lifecycle Status：ACTIVE (Last Updated: 19 hours ago)
Factory Lead Time：26 Weeks
Contact Plating：Tin
Mount：Surface Mount
Mounting Type：Surface Mount
Package / Case：8-PowerTDFN
Number of Pins：8
Weight：74mg
Transistor Element Material：SILICON
Current - Continuous Drain (Id) @ 25℃：13.2A Ta 20A Tc
Drive Voltage (Max Rds On, Min Rds On)：4.5V 10V
Number of Elements：1
Power Dissipation (Max)：2.5W Ta 27W Tc
Turn Off Delay Time：18 ns
Operating Temperature：-55°C~150°C TJ
Packaging：Tape & Reel (TR)
Series：PowerTrench®
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：5
ECCN Code：EAR99
Terminal Position：DUAL
Terminal Form：FLAT
JESD-30 Code：R-PDSO-F5
Element Configuration：Single
Operating Mode：ENHANCEMENT MODE
Power Dissipation：27W
Case Connection：DRAIN
Turn On Delay Time：8.4 ns
FET Type：N-Channel
Transistor Application：SWITCHING
Rds On (Max) @ Id, Vgs：9.5m Ω @ 13.2A, 10V
Vgs(th) (Max) @ Id：3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds：1410pF @ 15V
Gate Charge (Qg) (Max) @ Vgs：22nC @ 10V
Rise Time：2ns
Vgs (Max)：±20V
Fall Time (Typ)：1.6 ns
Continuous Drain Current (ID)：20A
Threshold Voltage：2V
JEDEC-95 Code：MO-240AA
Gate to Source Voltage (Vgs)：20V
Drain Current-Max (Abs) (ID)：47A
Drain-source On Resistance-Max：0.0095Ohm
Drain to Source Breakdown Voltage：30V
Pulsed Drain Current-Max (IDM)：50A
Nominal Vgs：2 V
Height：1.05mm
Length：5mm
Width：6mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free
